Product Name：RH-5012 Tracking Tester，PTI/CTI（IEC60695,IEC60112(GB 4207),IEC60335-1, IEC60598-1, JIS C2134）

Product category：Plug & Socket Test Equipment

Product Description

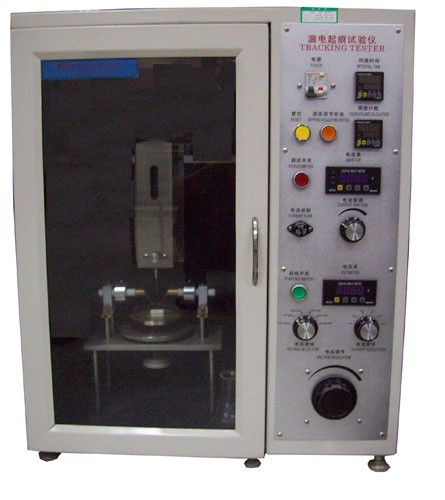

RH-5012 Tracking Tester
Hot: RH-5012J Tracking Tester（New model）http://www.cestr.com/cn/product/show.asp?id=298
Model RH-5012 is according to IEC 60695 and IEC 60112 (GB 4207), the tracking tester is intended for determining the degree of protection against formation of conducting paths in solid insulating materials, due to the electric stress and electrolytic contamination of the surface. This method simulates tracking currents on insulation material by providing drops between electrodes. During the process of normal use, insulating material may be exposed to moisture and dirt, if conductive, may cause stress and fire hazard.
Specification

Conform to standard	IEC 60695, IEC 60112 (GB 4207), IEC 60335-1, IEC 60598-1, JIS C 2134
Power Consumption	About 600VA
Test Voltage	100~600V continuonsly adjustable,displayed value:r.m.s
Test Current	Current limiting 1A±0.1Aadjustable,displayed value:r.m.s,tolerance of 1.5%
Electrode Dimensions	width: 5mm±0.1mm, thickness: 2mm±0.1mm, length >12mm, one end chisel-edge angle : 30°±2°,platinum.
Electrode Pressure	1.00N±0.05N
Dripping Nozzle	outer diameter: 0.9mm~1.2mm for solution A
Dripping Nozzle	0.9mm~3.45mm for solution B
Dripping Interval	0-99 seconds (adjustable),the time for 50 drops to fall on the specimen shall be (24.5±2)min
Height Drops	35mm±5mm
Dripping Weight	The mass of a sequence of 50 drops shall lie between 0.997g and 1.147g
Dripping Weight	The mass of a sequence of 20 drops shall lie between 0.380g and 0.480g
Specimen Support Platform	Thickness≥4mm glass
