RH-7069 Apparatus for verification of maximum withdrawal force
This machine meets standards of IEC60068-2-31, IEC 60884-1Clause 22, VDE 0620-1 Clause 22 ,GB 2099.1 Clause 22, GB17465.1 Clause 16 and IEC60320-1 Clause 16, test the maximum force that pull the plug out from the socket and the minimum force that pull the unipolar latch out from the plug push so it can be confirmed whether they are float or not.
Note:Weight requirement accord with the following table (Please description on the order required to meet country standards).

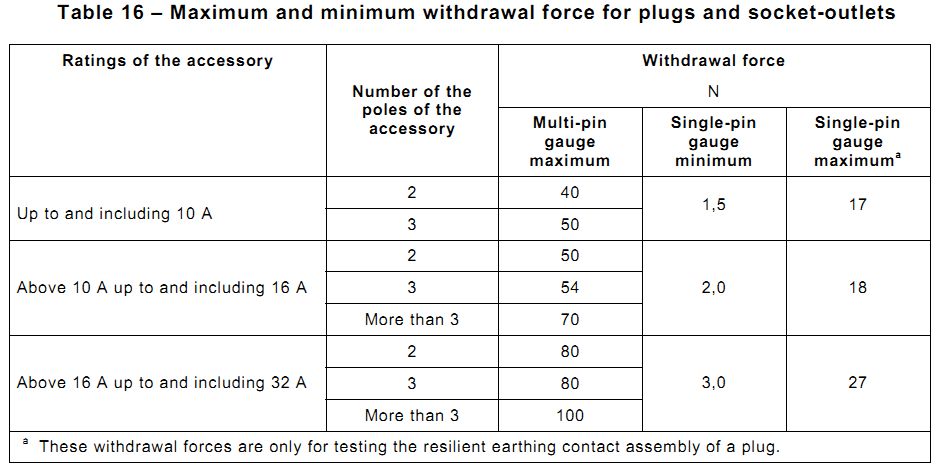

Withdrawal force-- Standard request of IEC 60884-1 and VDE 0620-1 and GB 2099.1

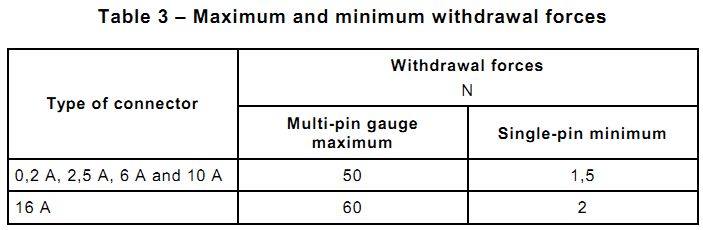

Withdrawal force-- Standard request of IEC 60320-1 and GB 17465.1
|
