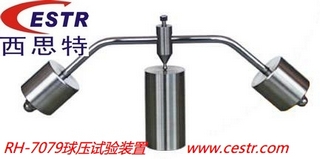

RH-7079 BALL PRESSURE TEST APPARATUS is designed and manufactured in compliance with GB 2099.1 Clause 25.2, GB4706, GB4943, GB17465.1 Clause 24.1.2, IEC 60695-10-2 ed3.0（2014）, 60335-1 Clause 30, 60950-1, 60884-1 Clause 25.2, 60320-1 Clause 24.1.2 , 60598-1, 61010, 61032, 60439-5, IEC 60601-1, BS 1363-1 Clause 22.2.1, IRAM 2073/4220-1,UL2601-1, CSA 60745, DIN VDE 0620-1 Clause 25.2, IS 1293 Clause 25.2, KS C8305, AS/NZS3109 Clause 24.1.2, etc.
|
Ball diameter : 5 mm(SR=2.5mm) .
Force exerted on the ball : 20 N ± 0.1 N.
Material : Stainless Steel.
Base size : 80 mm H x 50 mm dia. , approximate.
Weights : 4 Kgs, approximate.
|
All testing equipment and instrument before they leave the company, we will be in accordance with the relevant standard to carry on detection and calibration and issue certificate of quality. Also on behalf of clients to third-party calibration organization for calibration, the calibration and detection data can be traced back to national and international standards, and obtains with CNAS signed the multilateral agreements of mutual recognition of national and regional accreditation laboratory organizations mutual recognition, issued by the certificate and reports by the other members of the ILAC-MRA has been recognized and accepted, fully meet ISO9000 quality system and safety bodies and so on requirements. But calibration costs are not included in the price.
|
