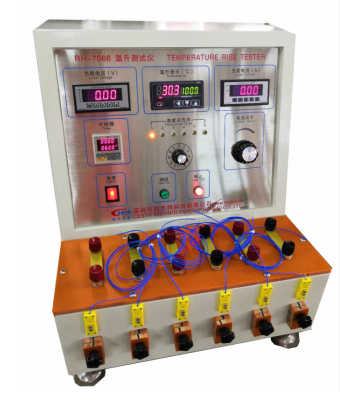

Product Name：RH-7066 Temperature Rise Tester
Product category：Plug & Socket Test Equipment
RH-7066 Temperature Rise Tester This tester meet standards of IEC 60884-1Clause 19, IEC 60320-1 Clause 21, UL 817 Clause 87, GB2099.1 Clause 19，VDE0620-1 Clause 19，GB17465-1 Clause 21 and so on, applicable to switches, sockets, converter, and the power cord, terminals, terminal connector temperature rise test. Technical parameters 1. Input voltage: AC220V+10%. 2. Operating current：0~40A, accuracy≤2%，continuing adjust, digital display. 3. Load voltage output：AC≤12，digital display. 4. Transformer capacity：800VA. 5. Testing temperature range：0~100℃，digital display. 6.Temperature Instrument: accuracy±2%±2d. 7.Ammeter/voltmeter: accuracy±2%±2d. 8. Timer：0.01s~99h99min, adjustable. 9. Thermocouples：K-type OD0.5mm wire thermocouples. 10.Working environment：T=20℃±8℃，RH≤85%. 11.Size: L450mm * W450mm * H520mm.
