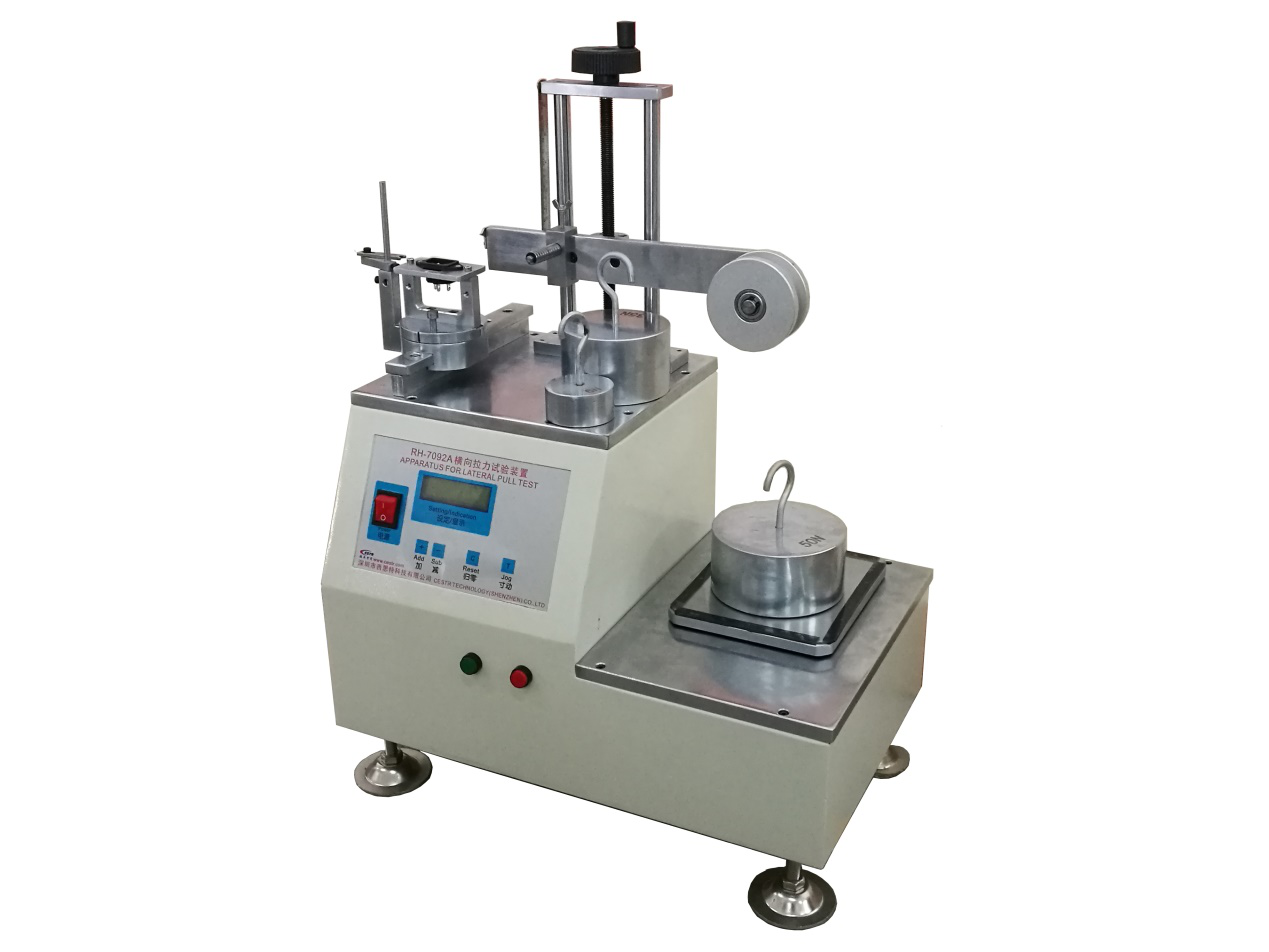

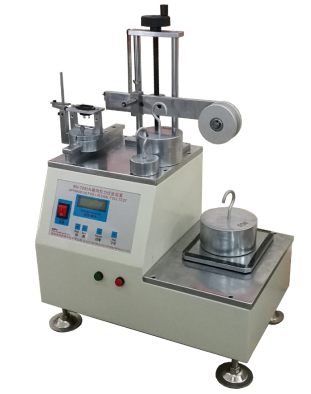

RH-7092A Apparatus for lateral pull test
Machine features
The machine conforms to the standard：
IEC 60320-1:2021 23.3 Lateral pull test for contacts
IEC 60320-1:2021 23.6.3 Lateral pull test
GB/T17465.1—2022 23.3 Lateral pull test for contacts
GB/T17465.1—2022 23.6.3 Lateral pull test
Parameters
Type：
|
RH-7092A
|
Votage：
|
220VAC±5%/50HZ/5A
|
Test fixture：
|
Suitable for connectors, plug connectors and appliance output sockets (standard C5/C7/13/C19)
|
Steps：
|
0/90/180/270° Four directions can be rotated and adjusted
|

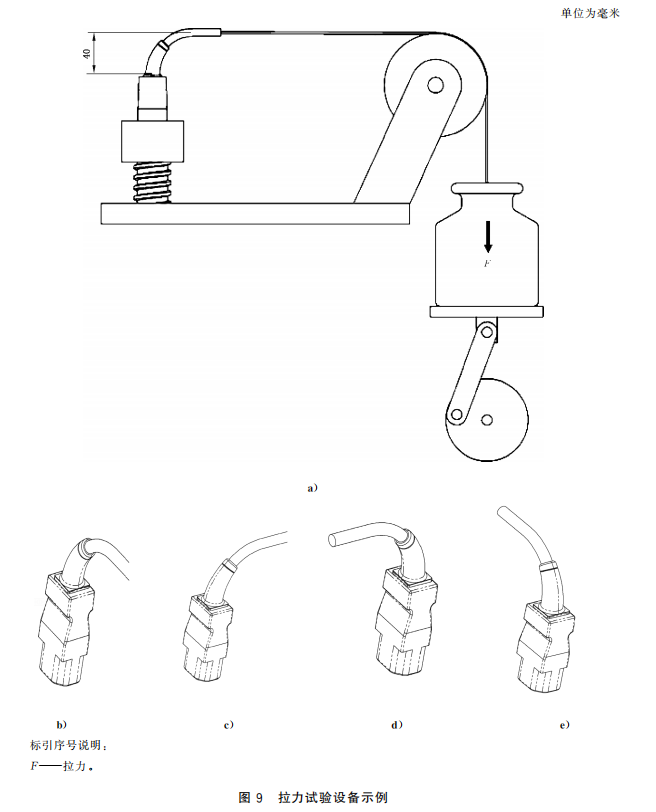

The height of the root of the connector (excluding the net tail) and the support rod is 40mm:
|
Adjustable lift
|
Weight：
|
6N/35N/50N/75N/100N
|
Mode of force application：
|
Automatic lifting of weight (electric)
|

|
