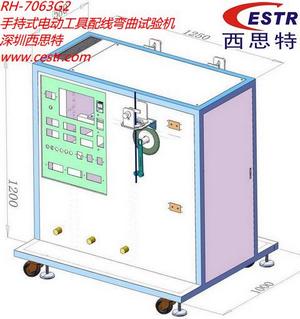

RH - 7063G2 hand-held electric tools wiring bending machine
Product introduction
The machine conforms to the hand-held electric tools 3883.3 1 GB, EN/IEC 60745 standards, assessment and hand-held electric tools included with the power cord 210 ℃ resistance bending test of mechanical strength. Machine has work independently for each station, load test voltage, current, intelligent operation characteristic; Can be simple and convenient on color LCD touch screen/control panel set the test voltage, current, frequency control of motor speed, test times, the working state of alarm to remind function, etc.
Technical parameters
1. The input power: AC220V, 60 a, 50 hz / 60 hz
2. The test speed: 0 ~ 20 weeks/min (1 week = 2)
3. The bending Angle: 0 ° ~ + 120 ° adjustable (default set plumb line flanked by 105 °)
4. Test station: 3 station (three motor)
5. The output voltage, AC stepless adjustable 0 ~ 300 v, 3 location independence
6. The output current: 0 ~ 2.5 A 3 A (or selected), 3 location independence
7. Number is: 3 workstation 1, counting number up to 999999 times, can be preset in the system
8. Fa code: 450 g x 3
9. Parameter adjustment: in color LCD touch screen set number/speed/Angle, panel to adjust the load voltage/current.
More models: http://www.cestr.com/cn/news/show.asp? Id = 248
Use customer: chongqing Bosch/kunshan zhengyi wins, etc
|
