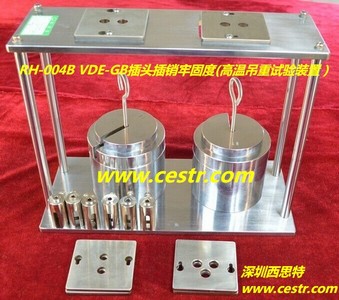

GB GB plug bolt fastness test unit (GB GB plug pin high temperature hoisting test unit)

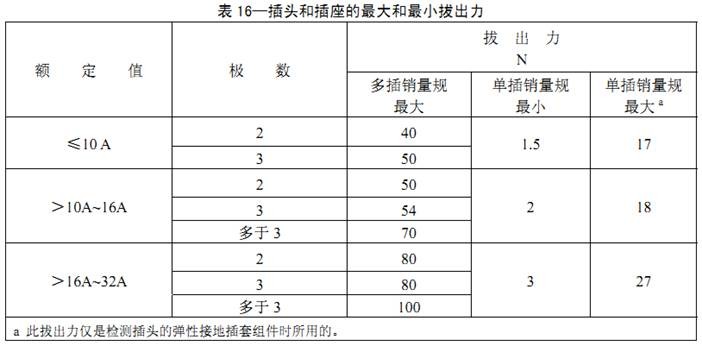

Conform to the requirements in section 24.10 and figure 30 GB20990 standard, used in 10 A two plug, 10/16 three national standard plug, a bolt load table 16 maximum output value for reinforcement pull test and verify.

Technical parameters:

Test unit: electroplating processing steel structure;

Test of fixed block of steel, 5 mm thick stainless steel block, two 1, three plugged into 10 a / 16 a each one;

Bolt fixed lock parts: gb plug 3;

Jordan farmar: 50 n X 1, 20 n X 2, 30 n X 1, 4 n X 1;

Size: about W400 L400 * * H400 (mm).

Germany VDE plug bolt fastness test apparatus (VDE plug pin high temperature hoisting test unit)

Conform to the requirements in section 24.10 and figure 31 VDE 0620, suitable for French plug, tools and European plug, plug bolt load table 16 maximum output value for reinforcement pull test and verify.

Technical parameters:

Test unit: electroplating processing steel structure;

Test of fixed block of steel, 5 mm thick stainless steel block, the French head/tool head, a total of 1, European head 1 (size reference IEC60884);

Bolt fixed lock parts: French/VDE tools plug 2, European head of 2;

Jordan farmar: 50 n X 1, 20 n X 2, 30 n X 1, 4 n X 1;

Size: about W400 L400 * * H400 (mm).

(European countries such as France, South Korea plug sharing)

Jordan farmar: above states Jordan farmar can share a set of plug to use, in accordance with the material number combination.
