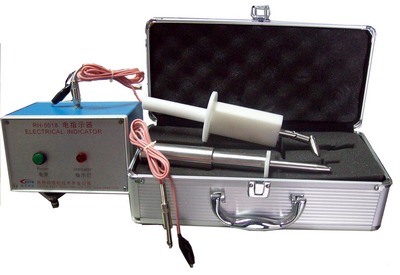

RH-5018 Electrical indicator
RH-5021 Test Finger-nail（B type/11 type）
This machine meets standards of IEC 61032, IEC 60884-1Clause 10, IEC 60320-1Clause 10,VDE 0620-1 Clause 10, GB 2099.1 Clause 10 and GB4706.1 (clause 22.11), and used for mechanical stress test during operation and check whether the contact movement parts meet the Grade of Protection. The fingernail is made up of fingertip, finger center, and finger socket.10N, 20N, 30N for choosing.
Technical requirements:
1. Test refers to the metal part by stainless steel, the handle is made of nylon; Each connector connected to the electricity indicator attachment and use.
2. 11 type test refers to: the biggest force of 75 n, ten of the 20 n/n/n / 40/50/75 30 n scale markers;
3. Type B test: three sections of bending diameter: 12 mm, curved length: 80 mm (three total length), handle baffle diameter of about 50 mm, handle baffle length of about 100 mm.
4. The electricity output voltage indicator, 40 ~ 50 v.
5. Electrical indicator input power: AC220V, 50 Hz / 60 Hz.
|
