Product Name:RH-6059 Cable Torsional strength Tester(ねじり強度 )

Product category:Japanese wire and cable testing equipment

Product Description

RH-6059 日本电线抗扭强度试验装置

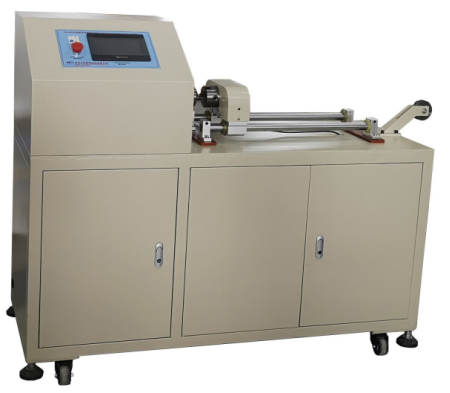

RH-6059 Cable Torsional strength Tester

電気用品の技術上の基準を定める省令の解釈について

TECHNICAL REQUIREMENTS BY THE MINISTERIAL ORDINANCE OF M.I.T.I.

別表第一  電線および電気温床線

APPENDIX 1  CABLES AND FLEXIBLE CORDS INCLUDING FLOOR HEATING CABLES

机器特点Machine features

符合别表第一的1.2.6条

钢心铝同心绞线的钢线,以其直径100倍的间隔获取适当长度的样品,以每分钟60圈的速度绞合时,圈数必须为20圈(直径为2.9mm以上时,16圈)以上,直至样本切断。

ねじり強度

鋼心アルミ同心より線の鋼線にあっては、適当な長さの試料をその直径の 100倍の間隔でつかみ、毎分約 60 回の速さでねじったとき、試料が切断するまでの回数が 20 回(直径が 2.9 ㎜以上のものにあっては、16 回)以上であること。

1.2.6 Torsional strength

For a steel wire of aluminum concentric stranded conductor having a steel wire in centre, grip a sample of proper length with the interval 100 times its diameter and twist it at the rate of about 60 times per minute, the number times until the cutting of sample shall be not less than 20 times (16 times for the wire having the diameter of not less than 2.9 mm).

产品参数Parameters

机器型号Type

RH-6059

输入电源Votage

220VAC±5%/50HZ/5A

速度设定Speed):

≈60q圈(r)/min触摸屏设定(Touch screen direct setting

圈数设定(cycles

0~99999触摸屏设定(Touch screen direct setting
