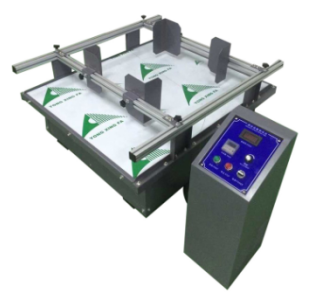

I. overview of the machine
To simulate the transport vibration table is mainly simulation in transit bus, meet different road conditions, such as: turbulence, uphill, downhill, turning, and so on and so forth, the products produced in a car trunk goods and goods of the collision, objects collide with trunk, items and items of extrusion, etc., damage to the product, so as to further improve the quality of goods quality and goods packing. In order to obtain the influence of the actual working conditions on the items in the laboratory, so as to evaluate or confirm the basis of the items and the packaging of the items.
How it works: the equipment is manufactured according to U.S. and European shipping standards and with reference to similar equipment in the United States.
Ii. Product features
1. Low price: the price is only 10% of similar products in America
2. Vibration frequency digital instrument digital display vibration frequency, high precision
3. Synchronous mute belt drive, low noise
4. The sample fixture adopts guide rail type, which is easy to operate and safe
5. The machine base is made of heavy-duty channel steel base with anti-vibration rubber, which is easy to install and runs smoothly without installing anchor screws.
5. Dc motor speed regulation, smooth operation, strong load capacity. ;
7. According to similar equipment in Europe and the United States, the system is reformed with rotary vibration, which conforms to the European and American transportation specifications.
Applicable to toys, electronics, furniture, gifts, ceramics, packaging transport industry on the product packaging test.
According to the European and American similar equipment, rotary vibration, in line with the European and American transport specifications
Iii. Main technical parameters
Maximum test load (kg) : 100kg
Frequency range: 100 ~ 300rpm
Amplitude range (mm) : 25.4mm (in.)
Vibration mode: reciprocating (commonly known as horse-racing)
Table size: L x W(cm)100 x 120
Machine top: SUS#304 stainless steel
External box part: aluminum alloy for clamping fixture on the surface of the electrolytic board for anti-static baking, powder spraying and baking paint
Time setting: 0seconds, 99hour
Startup time setting: 0-15seconds
Speed regulation: dc speed regulation
Power supply voltage (V/HZ) : AC 1 less than 220/50hz
Power consumption (KVA) : 0.75
Machine weight (kg) : 150
Environmental conditions: Temperature Temperature 5 ~ 40 ℃; Humidity, Humidity 85% RH or less
Standards: EN, ANSI, UL, ASTM, ISTA, GB/ t4857.7-2005.
Notes:
1. When installing the samples to be tested, make sure they are firmly installed and tighten the screw lock;
2. If the test sample is not clamped in the test, it shall be clamped again after shutdown. Operation is strictly prohibited if the machine is not shut down;
3. Put the test sample in the middle as far as possible;
4. The test sample shall not exceed the working table and shall not be overloaded.
|
