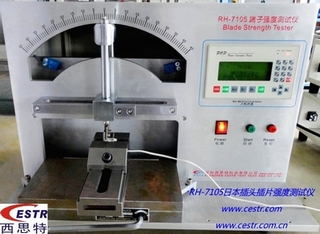

RH - 7105 Japan plug piece bending strength tester JIS C8303 & JIS C8306

RH - 7105 Japan plug tablet strength tester according to JIS C8303 & JIS standard design and manufacture of C8306, dedicated to Japanese standard plug bending test. This tester is designed reasonable, thick material, simple operation, suitable for different appearance in the shape of a sundial plug test; PLC microcomputer control, LCD display data, test frequency and bending Angle and optional Settings, and bending Angle point move, fine-tuning operations. Maximum extent, to avoid the error of the staff operating the results of qualitative,the test only for clamping test, set the parameters by the machine automatically after test process.

Parameter requirements

1. Use the power supply: AC 220 v / 50 hz

2. The test range: suitable for sundials plug

3. Counter number range: 1 ~ 99999999

4. Test Angle: plus or minus 30 degrees, plus or minus 10 degrees

5. Test the speed: 2 ~ 60 weeks (bending direction in turn from left - in - right -, 1 week)

6. Clamping height: clamping inserted into 8.5 mm (standards)

-- -- --

1.1 Strength of plug-in Blade Fixing Test (JIS) fixed terminal Strength Test (JIS).

2.0 the Purpose

2.1 To determine the strength of the blade fitting of the plug-in on Japanese plug-in. Confirm the Japanese plug is suitable for the terminal strength.

3.0 the Scope

3.1 This test is required on all Japanese approved plugs without anti - tracking housing, as the type test and reliability programme. Or, subject to a customer 's or operation requirement, the test may still be performed on plug-in with anti - tracking housing. All has obtained the Japanese certification of anti - tracking the plug of the inner sleeve in type testing or test type test plan requirements. If it is the special requirements of customers or operation, there is an anti - tracking set can also be inserted Japan plug do this experiment.

3.2 It covers the method and specification on the evaluation of the strength of the blades fitting parts of the plugs as guidance evaluation to choose the appropriate plug terminal strength provide methods and standards.

5.0 Equipment Equipment

5.1 Strength of Blade Fitting Tester. The fixed terminal Tester. (RH - 7105 Japan Plug piece bending Strength Tester/RH - 7105 Strength of plug-in Blade Fixing Tester)

6.0 Procedure program

6.1 Place the blade into the fixing plate to Figure 1 in Figure 1 in graphic terminals fixed in the fixture.

6.2 The number of times shall be counted by taking The movement of 1-2 as 1 time and 3-4 as 1 time to in Figure 2. The testing terminal, according to The requirements of Figure 2 graphic number for 1 to 2 to 1, 3-4 for once.

6.3 version of the blade from 1 to 2 and 3-4 through an Angle of 30 ° in each direction for 5 times. Due to the customer 's and operation requirement, the frequency may be increased mobile terminals, from 1 to 2, and 3-4 Angle of 30 degrees, a total of five times, such as the special requirements of customers and operations, frequency or number can ascend.

6.4 Acceptance Criteria and from Plan Acceptance Criteria and the Sampling Plan

6.4.1 Blade shall not be broken. The terminals are not broken.
