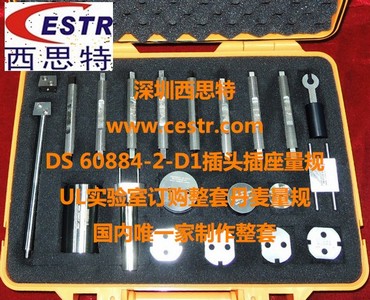

DEMKO Plugs and Sockets Dimension Gauges for DS 60884-2-D1:2011, SB 107-2-D1 Standard of Denmark
Warm congratulations UL ( Taiwan ) LAB to CESTR ordered IE 60884-1:2013, VDE 0620-1:2013, EN50075-1990, DS 60884-2-D1:2011, IEC 60320-1:2007, IEC 60320-2-2:1998 standards full set of test instruments and gauges. More: http://www.cestr.com/en/news/show.asp?id=221
Standard: DS 60884-2-D1:2011,SB 107-2-D1 5th edition.
Material: Body and pins in made by high-quality and high-strength steel or stainless steel and accessories made of high quality plastic.
Tolerance: according to standards and fig no.
Pack: Packed in soft material and high-quality plastic packaging.
Mark: laser marking specific model and fig no., etc.

No.
|
Figures
|
Gauges
|
1
|
Figure D 1
|
”Not-go”gauge C1 for checking size of entry holes on socket outlets 10 A, 13 A and 16 A 250 V
|
2
|
Figure D 2
|
”Go” gauge for checking two-pole socket-outlets
|
3
|
Figure D 3
|
”Go” gauge for checking insertion of two-pole plugs into two-pole socket-outlets 10 A, 13 A and 16 A 250 V
|
4
|
Figure D 4
|
“Go”gauge C 4 for acceptance of two pole plugs with side-earthing contacts (C4 of CEE7)
|
5
|
Figure D 7
|
"Go" and "Not go" gauges C 7 and D 7 for checking distance to the point of first contact in two-pole socket-outlets 2.5A, 10A, 13A and 16 A 250 V
|
6
|
Figure D 9
|
"Go" and "Not go" gauges C 9 and D 9 for checking pin diameter in two-pole plugs 2.5A, 10A, 13A and 16A 250V and pin earth socket-outlet
|
7
|
Figure D 10
|
"Go" gauge C 10 for checking pin spacing in two-pole plugs 10 A, 13 A and 16 A 250 V
|
8
|
Figure D 11
|
"Go" gauge C 11 for checking maximum opening of contact tubes in two-pole socket-outlets 10 A and 16 A 250 V
|
9
|

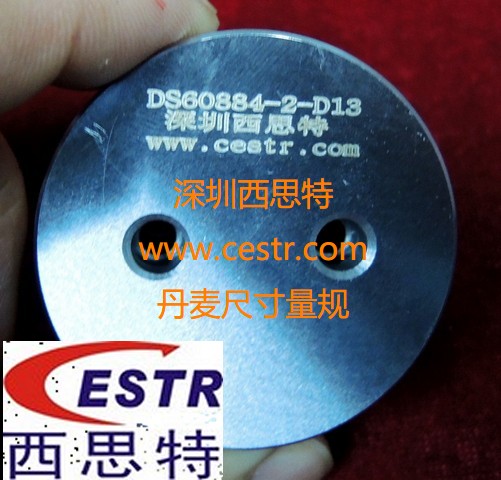

Figure D 13
|
Gauge C 13 for checking interchangeability for two-pole plugs for Class II appliances 2.5 A 250 V
|
10
|
Figure D 16
|
Gauge D 16 for non-acceptance of two-pole plugs without earthling contact
|
11
|
Figure D 18
|
Gauge D 18 for checking impossibility of single-pole insertion of plugs into two-pole socket-outlets 10 A, 13 A and 16 A 250 V
|
12
|
Figure D 19
|
Gauges C19 and D 19 for checking impossibility of single-pole insertion of two-pole plugs 2.5 A, 10 A, 13 A and 16 A 250 V into socket-outlets
|
13
|
Figure D 19a
|
Gauges C19a for checking deformation of side-earthing contacts
|
|
