Product Name:RH-1J Portable Low Dosed X-ray Fluoroscopy Instrument

Product category:Optical Instrument

Product Description

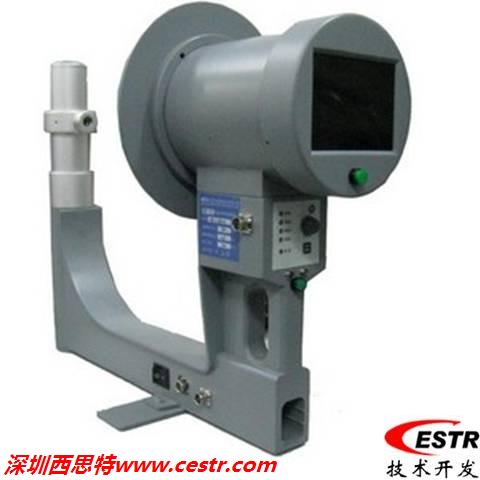

Model  RH-1J Portable Low Dosed X - ray Fluoroscopy Instrument

Model  RH-112 X-Y-Z Lead plate of radiation protection box and with Three-axis linkage test platform (Optional)


Applications
Widely used in hospitals, rural hospitals, clinics, ambulance orthopedic diagnostic and surgical treatment can also be used in the electronics industry, manufacturing, mining and other industries, such as non-destructive testing.
Features
It adopts flat plate image intensifier and built-in high voltage generator. Due to the quick response and high sensitivity characteristics of flat plate image intensifier, the ray dose is very low which protects the operator and patients far from radiation.
1. Without the darkroom and protecting, can work at any time.
2. High sensitivity, and high resolution Image intensifier, offers you newer visual feeling
3. Low radiation dose, reliable protection, simple structure, small volume and light weight, both can be handheld and used on the table, it's very convenient to handle.
4. Can be connected to video and computer.

Main Technical Parameters

Field of Vision

Φ 100mm

Imaging Resolution

≥ 30lp/cm

Maxi Objective Thickness

300mm

Screen Brightness

≥ 25CD/m2

X-ray Tube Voltage/Current

80kV/0.5mA

X-ray Leakage

(50cm away from X ray tube, any angle)< 1mGy/Hour

Grey Scale

≥ 6  grade

Power Supply

90-240V, 50 or 60Hz

Power Consumption

70VA

Net Weight

8kg

Gross Weight

13kg

Size of Handheld Case

66*53*22cm

Export image from any monitor

Observe from monitor or computer

Specialization and application

Four limbs and industrial products

Components

Model RH-1J

Portable Low dosed X - ray Fluoroscopy Instrument

1 set

Power supply

1 piece

Power supply wire

1 piece

USB TV box

1 piece

USB TV box of AV wire

1 piece

Video controller with wire

1 piece

Foot switch with wire

1 piece

Portable Aluminum alloy case

1 piece

Model RH-112

X-Y-Z Lead plate of radiation protection box and with Three-axis linkage test platform

1 piece (Optional)
