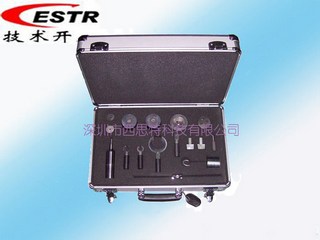

Germany VDE0620-1:2013, 0620-2-1:2013 VDE Plug and socket dimension gauges
Warm congratulations UL ( Taiwan ) LAB to CESTR ordered IE 60884-1:2013, VDE 0620-1:2013, EN50075-1990, DS 60884-2-D1:2011, IEC 60320-1:2007, IEC 60320-2-2:1998 standards full set of test instruments and gauges. More: http://www.cestr.com/en/news/show.asp?id=221
Standard: VDE0620-1:2013, 0620-2-1:2013.
Material: Body and pins in made by high-quality and high-strength steel or stainless steel and accessories made of high quality plastic.
Tolerance: according to standards and fig no.
Pack: Packed in soft material and high-quality plastic packaging.
Mark: laser marking specific model and fig no., etc.
No.
|
Fig. no
|
Qty
|
DIN- VDE0620-1:2013, 0620-2-1:2013
|
1
|
DIN-VDE0620-1-Lehre1
|
3
|
2
|
DIN-VDE0620-1-Lehre2
|
2
|
3
|
DIN-VDE0620-1-Lehre3
|
1
|
4
|
DIN-VDE0620-1-Lehre4
|
1
|
5
|
DIN-VDE0620-1-Lehre5
|
4
|
6
|
DIN-VDE0620-1-Lehre6
|
4
|
7
|
DIN-VDE0620-1-Lehre7
|
2
|
8
|
DIN-VDE0620-1-Lehre8
|
1
|
9
|
DIN-VDE0620-1-Lehre9
|
1
|
10
|
DIN-VDE0620-1-Lehre10
|
1
|
11
|
DIN-VDE0620-1-Lehre10
|
1
|
12
|
DIN-VDE0620-1-Lehre11
|
1
|
13
|
DIN-VDE0620-1-Lehre12
|
4
|
14
|
DIN-VDE0620-1-Lehre13
|
1
|
15
|
DIN-VDE0620-1-Lehre14
|
1
|
16
|
DIN-VDE0620-1-Lehre15
|
1
|
17
|
DIN-VDE0620-1-Lehre16a
|
1
|
18
|
DIN-VDE0620-1-Lehre16d
|
1
|
19
|
DIN-VDE0620-1-Lehre17
|
1
|
20
|
DIN-VDE0620-1-Lehre18
|
1
|
21
|
DIN-VDE0620-1-49440-L1
|
1
|
22
|
DIN-VDE0620-1-49440-L2
|
1
|
23
|
DIN-VDE0620-1-49441-L1/L2
|
4
|
24
|
DIN-VDE0620-1-Bild14
|
6
|
25
|
DIN-VDE0620-1-Bild15
|
12
|
26
|
DIN-VDE0620-1-Bild43
|
2
|
27
|
DIN-VDE0620-1-16e
|
2
|
28
|
DIN-VDE0620-1-19a
|
1
|
29
|
DIN-VDE0620-1-19b
|
1
|
EN50075:1990
|
30
|
EN50075:1990 Figure1
|
1
|
31
|
EN50075:1990 Figure2
|
1
|
32
|
EN50075:1990-Figure4
|
2
|
|
