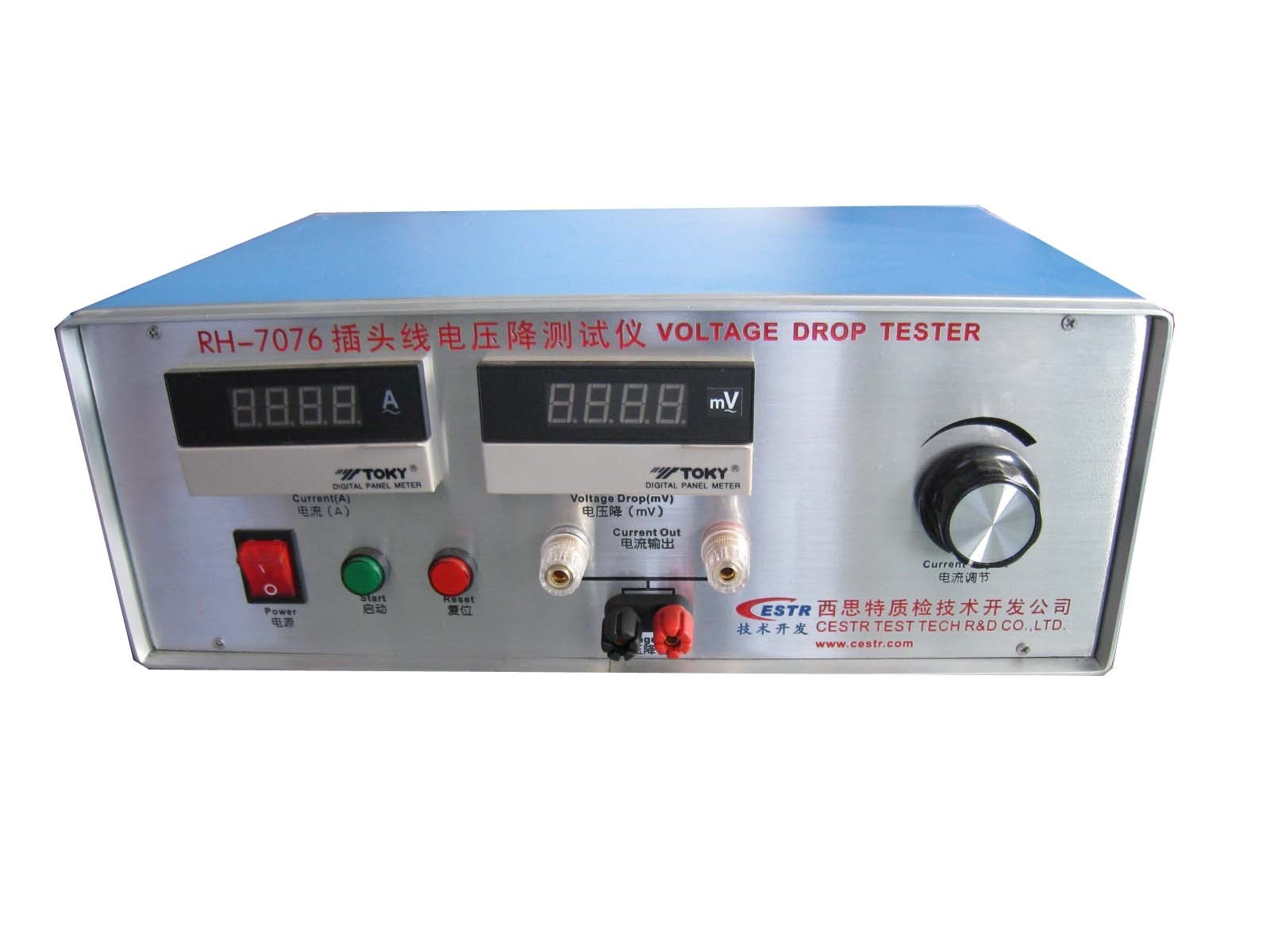

RH-7076 Voltage-Drop Tester
Model RH-7076 is designed and manufactured to meet the requirements of standards IEC 60884, GB 2099, VDE 0620, BS 1363-1, 2, CE 23-50, IEC 60320, GB 1746, UL 817, such as standards. After flexing test is used to check the plug disconnected and voltage drop.
Specification
1. Input voltage: AC220V+10%，50Hz；
2. Output current: 0~40A, adjustable；
3. Voltage-drop range: 0~2000mV；
4. Ammeter accuracy：±1%±3 digits；
5. Voltmeter accuracy: ±1%±3 digits；
6. Output voltage：AC 12V;
7. The other can be customized.
|
