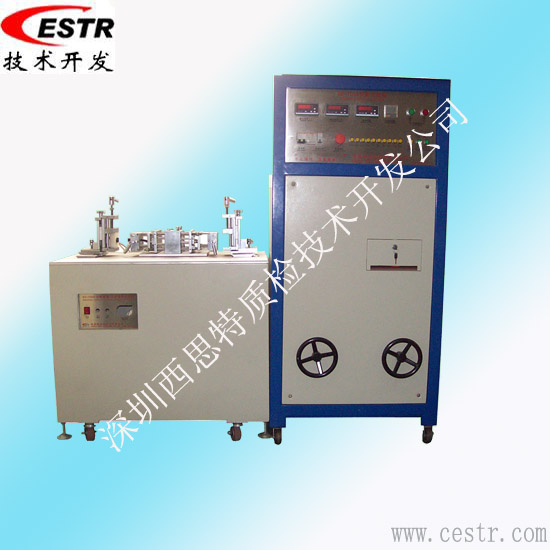

RE-7080E Breaking Capacity & Normal Operation Tester (Laboratory dedicated)
The testing machine according to IEC 60884-1/VDE 0620-1/GB 2099.1/DS 60884-2-D1 Clause 20 & 21, BS1363-1, -2 Clause 17 & 18, IEC 60320-1/GB17465.1, IEC 60320-2-2/GB17465.2 Clause 19 & 20 and other standards , and electric power load used in conjunction with the normal operation of breaking capacity test, life test also can plug and socket. Testing is controlled by PLC and color touch screen display menu and set the test parameters, a smart discriminant function and alarm function, according to the load turnon and breaking or mechanical action count.
Technical parameters
1. Working voltage: AC220V±10%, 10A, 50Hz/60Hz;
2. Test station: 2-section (Single-phase independent work)；
3. Control: PLC + color touch screen display and set parameters;
4. Test speed: 5~30times/min, continuing adjust.
5. Working stroke：≥50mm.
6. Applied Load mode: turnon and breaking, preset;
7. Applied voltage mode: each time/every time, preset;
8. Conduction time: real-time display (determined by the test times per minute)
9.Test times: 0～999999 cycles, preset;
10. Test plugs: customization, specified by the customer model and additional quotes. For example, IEC 60320 C14.
RH-7080 Load power supply cabinet(New Model, Laboratory dedicated)
Applying the standard requirements of the load to the sample of the breaking capacity & normal operation teste. All load set by the digital meter display, test current is set by combining the outputs, test current is set by combining the outputs and the test voltage and power stepless adjustable.
Technical parameters
1. Working voltage: AC220V±10%, 50Hz/60Hz;
2. Working current: AC 60A;
3. Output voltage: AC 40～290V (stepless adjustable)；
4. Output current : AC 0～30A, purely resistive load;
5. Power factor : ¢ 0.3～¢ 1.0；
6. Voltmeter accuracy : ± (0.4% reading +0.1% range +1 dig);
7. Ammeter accuracy : ± (0.4% reading +0.1% range +1 dig)；
8. Load output：digital meter display；
9. Safety performance : the well-known high-quality electrical components , high sensitivity leakage protection systems to ensure that the operator does not constitute a potential danger.
|
