RH-7072

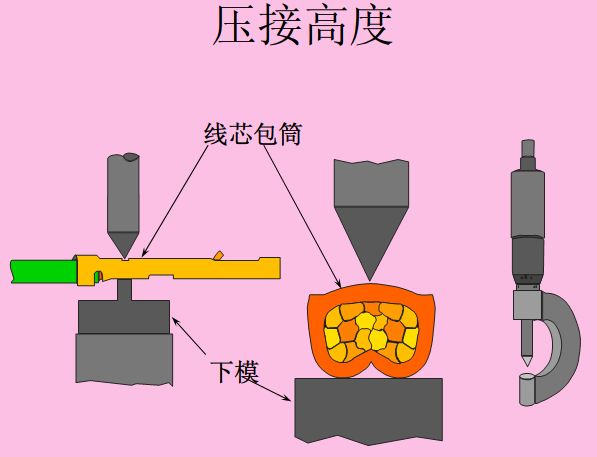

Used for measuring the terminal crimping height(or height and width)meet the quality requirements。

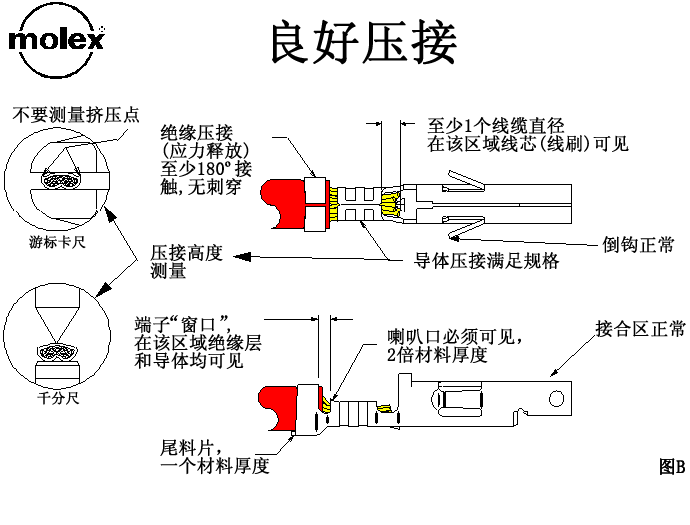

Terminal pressure welding wire processing industry is one of the most important working proceduce,terminal crimping directly affect the product quality and perforance (such as the conductor resistance and contact resistance,temperature and other performance,ect),due to the terminal crimping bad problems very much,Assessment and control terminal crimping(bulk)is the most convenient and practic method,a terminal tensile test and the terminal crimping height measurement(or height and width).tensile tests are important but destructive testing,if we can confirm the terminal crimping height and width)data,directly measuring terminal crimping height value,ect,to ensure quality and reduce coast pressure.
Characteristica：
1．The origin with a zero key is rasy to setup.
2．The ratchet wheel lock or the friction casingcan keep the constant load
3. The large LCD display is easy to measurement results are reading
4. The point type.
Technical parameters：（reference only and will be subject to type）
Measuring range 0~25mm
Precision type imperial/metric 0001〞
Resolution of  0．001mm or .0005〞
Flathness 0.3μm
Parallel  2μm
Measuring surface carbide
Show LED show
SR44 battery (2).938882
Battery life is about1.2year under normal use
Function:preset,auto power on/off,data retention,data output ,imperial/metric conversion
(imperial/metric type)
Warming:low voltage,calculation error.
